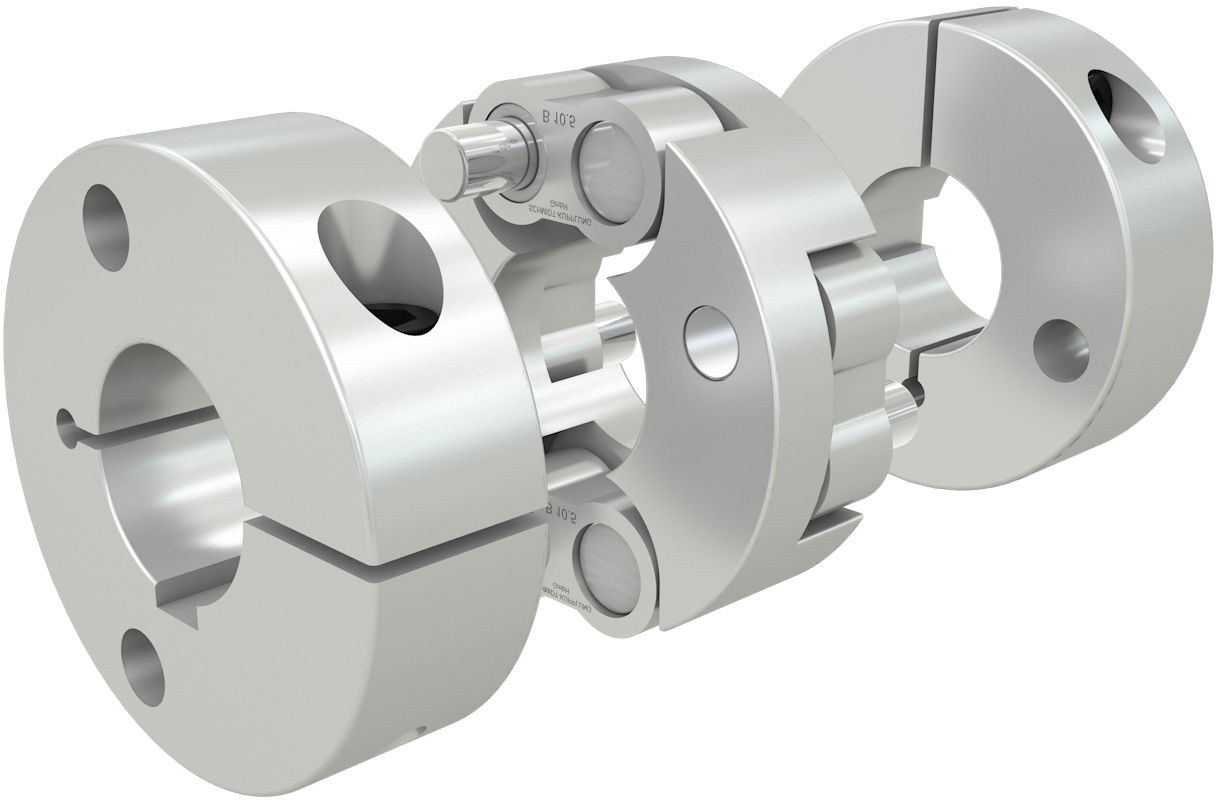

1
Hubs
Dynamic series: Clamping hubs made of aluminium 3.2315, EN AW-6082, excellent corrosion resistance; hubs additionally anodised Standard/Compact Plus series: Clamping hubs, split clamping hubs, hubs with feather key grooves and steel 1.0570 version for flange mounting; clamping hubs made of 1.0570 and 1.7225 steel
Dynamic series: Clamping hubs made of aluminium 3.2315, EN AW-6082, excellent corrosion resistance; hubs additionally anodised Standard/Compact Plus series: Clamping hubs, split clamping hubs, hubs with feather key grooves and steel 1.0570 version for flange mounting; clamping hubs made of 1.0570 and 1.7225 steel
2
Coupling links
Steel; parallel pairs of links compensate for high radial displacement through force-free pivoting movement
Needle bearings
High-quality needle bushes
Steel; parallel pairs of links compensate for high radial displacement through force-free pivoting movement
Needle bearings
High-quality needle bushes
- High load rating
- High radial limit loads
- Long service life
- Permanent lubrication, maintenance-free
3
Coupling bolts:
Steel, hardened, interaction matched to high-quality coupling needle bearings
Steel, hardened, interaction matched to high-quality coupling needle bearings
4
Central plate
Dynamic series: Central plate made of aluminium 3.2315, EN AW-6082, excellent corrosion resistance; central plate additionally anodised
Standard/Compact Plus series: Steel 1.0570 central plate
Dynamic series: Central plate made of aluminium 3.2315, EN AW-6082, excellent corrosion resistance; central plate additionally anodised
Standard/Compact Plus series: Steel 1.0570 central plate
Bitte aktivieren Sie Javascript.

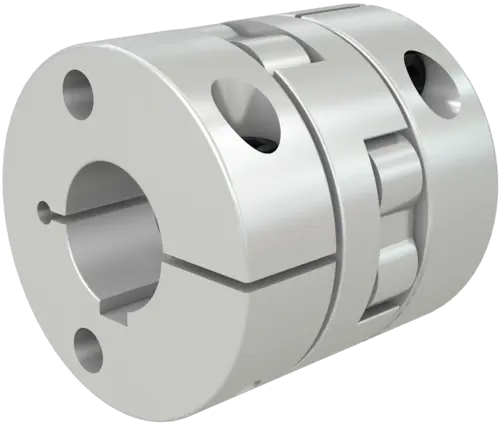

The slim coupling with outstanding capacity
Pivoting effortlessly instead of bending – this is how the Semiflex coupling compensates for high radial displacements. By leveraging its special functional principle, compensation is achieved in short conditions. This feature is not only responsible for the exceptional compactness of the torsionally stiff coupling, but lets the coupling not give up when it comes to high misalignments by compensating for them effortlessly, and, as a result of its absolute sync, not be thrown off course either.
